Agent Contracts and Spatial Web Governance

How the IEEE 2874-2025 CONTRACT entity forms the core of Spatial Web Governance for coordinating autonomous agents. The page also covers law as code, how it relates to normative languages such as eFLINT, and the implementations that put these ideas into practice.

📜 IEEE 2874-2025 Spatial Web 🤝 CONTRACT · ACTIVITY · AGENT ⚖️ Law as code
George PercivallGeoRoundtable · October 2026

Autonomy means self-governance. As AI systems gain autonomy, governance has to reach the systems themselves, not only the people who build and deploy them. The Dentons report, The Future of Global AI Governance, makes this case and points to socio-technical standards and law as code as the way forward.

The IEEE Spatial Web Protocol, Architecture, and Governance Standard (IEEE 2874-2025) provides that standard. In IEEE 2874, agents coordinate by forming contracts for activities. A requesting agent asks for an ACTIVITY to be performed, and a performing agent with the capability signs a CONTRACT to carry it out. IEEE 2874 states that “a contract shall be the mechanism used for connecting entities interacting on the Spatial Web” (6.3.6).

The Spatial Web Foundation’s HSML Implementation Specification encodes the CONTRACT as gov:Contract, the “universal trigger and single enforcement point” for every Activity. It binds deontic norms, authority-issued policies, and verifiable credentials into one auditable record.

The problem
Regulating only developers and deployers will not scale to systems that make billions of autonomous decisions a day. Principles, values, and law must be encoded into the AI systems themselves.
The mechanism
Agents form contracts based on activities. A CONTRACT is a Spatial Web ENTITY with a five-state lifecycle: Requested, Executed, Fulfilled, Rescinded, Breached.
The formalism
Contract status is decidable. It evaluates as True or False against the HSML domain model, so conditions can be checked by machine in real time.
Law as code
Flying Forward 2020 parsed EU drone regulation into HSML. IEEE 2874 adopts the law-as-code paradigm and notes parallels with eFLINT and PDDL as possible avenues for exploration.

Part 1 · The governance case

The Dentons Report

The Dentons report The Future of Global AI Governance (July 2023) combines legal analysis, AI research, and standards guidance. It presents the Spatial Web standards, then in development as IEEE P2874, as a response to a governance gap.

The Dentons report starts from the etymology of autonomy: auto (self) plus nomos (law or governance). Autonomy is therefore self-governance. As the report puts it, AI governance “must also be about governing the AI systems themselves, and the networks that connect them to the data and devices they operate on.”

In its section on the limitations of current proposed regulations, the Dentons report concludes that frameworks relying only on penalizing developers and operators will become inadequate. Its example is autonomous vehicles, which will make billions of decisions a day, beyond what humans can manage one decision at a time.

The report follows NIST in calling for socio-technical standards that combine technical, social, legal, and ethical requirements. At the center of these is HSML, a modeling language that grounds AI in the Who, What, When, Where, How, and Why of any situation. The report’s example is a hospital robot: an identified robot holds a credential, issued by Health and Human Services, granting it the right to perform a medical procedure within USC Medical Center.

“How do we govern AI systems that are on a path to becoming self-governing?”

— The Dentons report, The Future of Global AI Governance

Govern the systems Encode values Interoperate Law as code
Disclaimer noted in the report
The Dentons report’s summary of the Spatial Web standards is not an endorsement by any individual author, including Dentons US LLP.

Five core needs, mapped to IEEE 2874

Dentons report core needWhere it lands in IEEE 2874 / HSML
Shared understanding of meaning and context between humans and AIsHSML entity model (SPACE, AGENT, ACTIVITY, DOMAIN, CREDENTIAL, CONTRACT …) as a common grounded vocabulary
Explainability through explicit modeling of decision-makingACTIVITY schemas with explicit initial and resulting conditions; contract evidence and audit trail
Interoperability across organizations, networks, and bordersHSML entities with Spatial Web IDs (W3C DIDs), registered in the Universal Domain Graph (UDG)
Compliance with diverse regulatory demands, cultural norms, and ethicsDomain Authorities, gov:Policy and gov:Norm, contract validation against Domain rules
Authentication and credentialing, with privacy and security by designW3C Verifiable Credentials and CredentialProfiles, checked when a contract is validated

Law as code in the Dentons report

🚗
Law assumes a person
Driving laws define a “driver” as a “person” in “physical control of a vehicle.” That definition fails for self-driving cars.
⚙️
Machine-executable law
Laws need to be machine-readable, machine-interpretable, and machine-executable. They can then govern machine behaviour directly and adapt as conditions change.
🌍
Semantic representation
Law as code needs semantics, not just code, to handle multilingual, multi-jurisdictional, and changing regulation while staying globally interoperable.
🔁
Exposing ambiguity
Encoding law reveals ambiguities in natural-language law and feeds them back to the people who draft it.

Part 2 · Agent coordination

Agents Forming Contracts Based on Activities

IEEE 2874 describes the Spatial Web as intelligent AGENTS with CREDENTIALS, performing ACTIVITIES discussed in CHANNELS, on and in DOMAINS represented in HYPERSPACES, fulfilling CONTRACTS with other AGENTS.

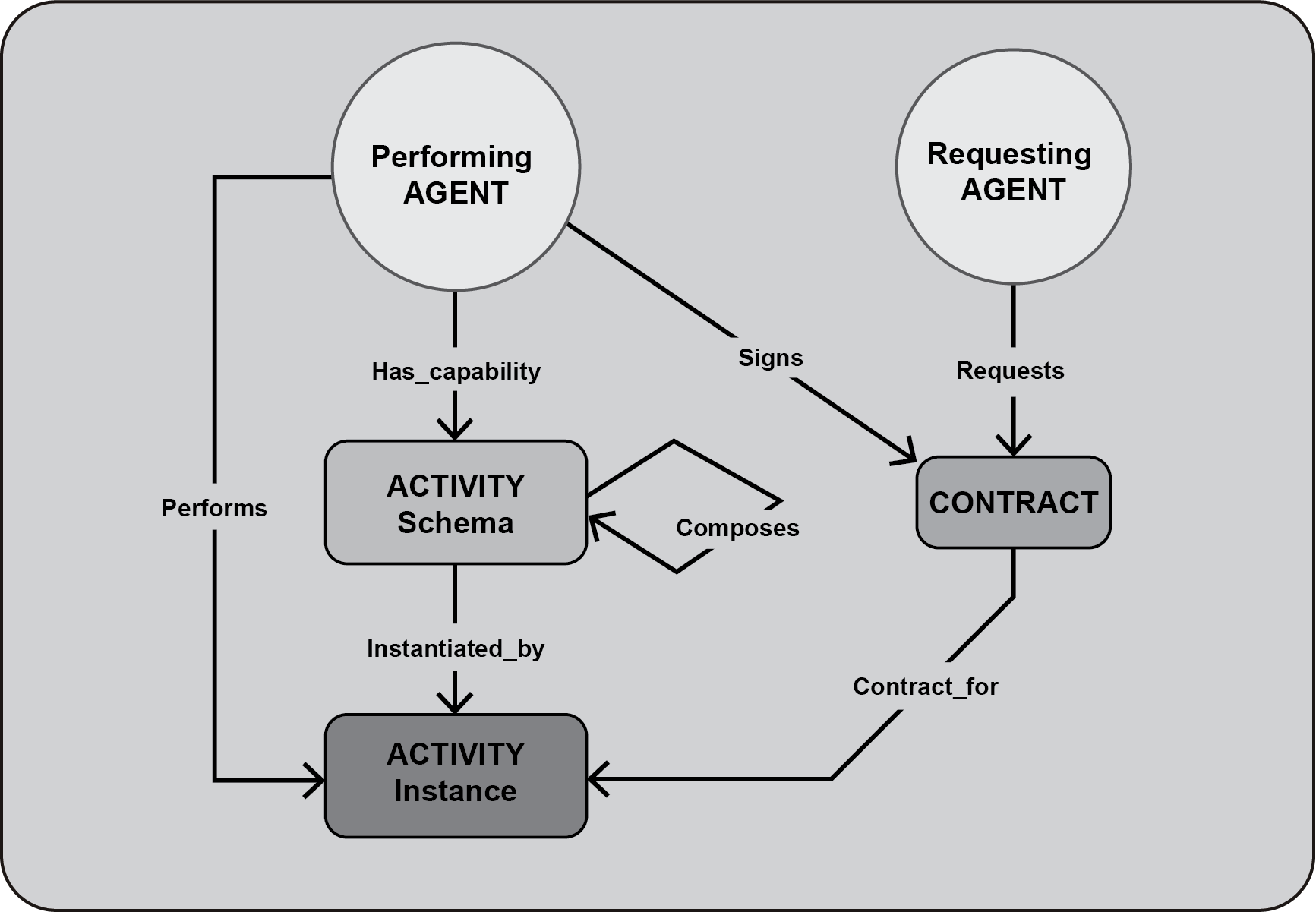

Diagram: a Performing AGENT has capability for an ACTIVITY Schema, signs a CONTRACT and performs the ACTIVITY Instance; a Requesting AGENT requests the CONTRACT, which is a contract for the ACTIVITY Instance.

AGENT–CONTRACT–ACTIVITY relationships (IEEE 2874, Figure 24, clause 6.6.11). A requesting agent requests a contract. A performing agent with the capability for the activity schema signs it, then performs the activity instance the contract is for.

🏛️
Domain Authorities
Credentialed to define the norms and terms under which contracts governing agents, activities, and credentials are created in a DOMAIN. Requests and rules are evaluated as queries against the HSML Domain model (6.5.5.4).
🪪
Credentials
Support claims of identity, domain relationships, an agent’s ability to perform an activity, and the right to sign contracts (6.5.3).
🤝
Coordination
Agents decide collectively through “consensus, voting mechanisms, or contractual agreements” and resolve conflicts over contract assignment, goals, and resources (6.4.3).
🧾
Audit
The UDG records activities executed under a contract, with verification and progress tracking. Every UDG registry network has a contract with the Spatial Web Authority (6.3.6, 6.4.4.8).
Governance regardless of intelligence
Where agents cannot avoid conflicts themselves, ACTIVITY instances and CONTRACTS supply the conflict-resolution and normative constraints, “regardless of the AGENTS levels of ability or intelligence” (6.4.4.7). In the IEEE 2874 warehouse scenario, a human worker and a robot are credentialed for a pick/pack activity. They negotiate a contract and then carry out the work together.

Part 3 · The CONTRACT entity

CONTRACT in IEEE 2874 and HSML

IEEE 2874 defines a CONTRACT as “a Spatial Web ENTITY that represents a request to perform an instance of an ACTIVITY” (6.6.5). The HSML Implementation Specification turns it into a machine-actionable class.

AspectIEEE 2874 normative content
Definition“A binding agreement between two parties, especially enforceable by law, or a similar internal agreement wholly within an organization” (adapted from IEEE Std 730-2014).
Relationships (6.6.5)Requested by a DOMAIN or an AGENT; accepted (signed) by an AGENT; fulfilled by an AGENT; an agreement for the performance of an ACTIVITY; an agreement between two or more parties.
AttributesAll mandatory ENTITY fields; a parties field; a contract status of Requested | Executed | Fulfilled | Rescinded | Breached; a timestamp for each status change.
Decidable status (6.5.4.5)“Contract status shall be a function of the status of the associated Activity instance, such that the contract conditions can be evaluated as True or False against the relevant Domain description(s).”
Automatic execution (6.5.4.5)Domain architectures shall enable automatic execution of contracts when mutually agreed conditions are reached, as close to real time as possible, including at the network edge.
Economics (6.5.1.3)“This standard does not require that a CONTRACT contain any particular economic terms.”

gov:Contract in the HSML Implementation Specification

SWF STD-2:2025 (v0.2.0) defines gov:Contract as “a binding agreement governing the execution of one or more act:Activity instances by specific agt:Agents within a core:Domain context.” Its design principle, Contracts as the Universal Trigger, states: “Execution of every act:Activity is mediated through a gov:Contract. The Contract acts as the universal trigger and single enforcement point.” Every contract carries a W3C DID-compliant Spatial Web ID. The specification lists its properties as follows (Table 87):

PredicateJSON-LD nameDescriptionRangeCardinalityRequirement
gov:isRequestedByrequestedByThe core:Domain that initiated the contract.core:Domain1..1Mandatory
gov:isAcceptedByacceptedByThe agt:Agent(s) that accepted the contract.agt:Agent1..*Mandatory
gov:isFulfilledByfulfilledByThe agt:Agent(s) responsible for fulfilling the contract.agt:Agent1..*Mandatory
gov:contractForcontractForThe act:Activity the contract governs.act:Activity1..*Mandatory
gov:contractStatuscontractStatusThe current lifecycle status: Requested, Executed, Fulfilled, Rescinded, or Breached.xsd:string1..1Mandatory
gov:hasParticipationhasParticipationLinks to detailed participation records.core:Participation0..*Optional
gov:Norm

Atomic deontic rules

One modality (Obligation, Prohibition, or Permission), applied to targets through executable conditions in SHACL, SPARQL ASK, JSON Schema, or CEL. May declare onViolation enforcement.

gov:Policy

Authority-issued bundles

Package Norms with scope, validity window, precedence for conflict resolution, jurisdiction, and the credential profiles a contract must satisfy.

gov:Credential

Verifiable trust

W3C Verifiable Credentials, checked when a contract is validated against CredentialProfiles covering issuer trust, subject binding, proof, and freshness.

Contract evaluation flow (HSML 9.1.7)

Discover Policies → Resolve Norms by precedence → Verify credentials → Evaluate conditions → Record decision in Contract

Part 4 · Law as code

From Legal Text to HSML

The EU Flying Forward 2020 (FF2020) project, the case study in the Dentons report, built urban air mobility infrastructure on draft IEEE Spatial Web standards. It translated drone regulations into HSML so that autonomous drones could comply automatically.

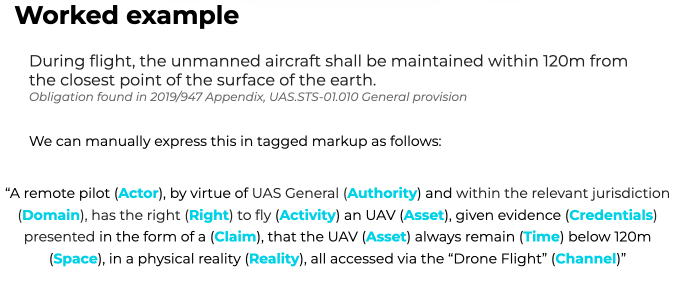

FF2020 worked example: the 120 m altitude obligation expressed as tagged markup with Actor, Authority, Domain, Right, Activity, Asset, Credentials, Claim, Time, Space, Reality and Channel.

Worked example. FF2020 took an obligation from the EU drone regulation and expressed it by hand in tagged markup, mapping each phrase of the legal text to an HSML element.

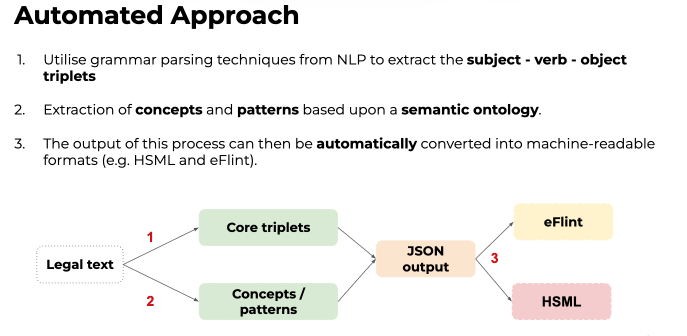

FF2020 automated approach: legal text parsed into core triplets and concepts/patterns, combined into JSON output, then converted to eFLINT and HSML.

Automated approach. NLP grammar parsing extracts subject–verb–object triplets, a semantic ontology extracts concepts and patterns, and the JSON output is converted into HSML and eFLINT.

The Dentons report highlights two further results. First, encoding law exposes ambiguity. In “UA operators must fly safely,” what does “safely” mean? HSML can flag such clauses, creating “a virtuous two-way loop between analog law and digital law.” Second, conditional spatial rules can be encoded. For example, within 50 m horizontally of an artificial obstacle taller than 105 m, the maximum operating height may rise to 15 m above the obstacle (UAS.STS-02.010). FF2020 used an earlier HSML entity model than the 2025 standard.

“During flight, the unmanned aircraft shall be maintained within 120m from the closest point of the surface of the earth.”

EASA rule — IEEE 2874 law-as-code worked example (6.5.5.2)

Remote pilot · AGENT Jurisdiction · DOMAIN Authorized · CREDENTIAL EASA · DOMAIN AUTHORITY Fly · ACTIVITY Below 120 m · SPACE condition

IEEE 2874 (6.5.5.1) adopts the “rules-as-code” (MIT Computational Law) or “law-as-code” paradigm. The paradigm covers both translating existing law into executable code and designing new law for autonomous systems. Agents assent to governance by signing a contract to take part in the enforcement Activity. Domains govern by granting credentials only for Activity types consistent with Domain Authority rules. The EASA rule becomes a spatial predicate that can be checked against the domain model when the flight is executed.

Relation to other normative languages: possible explorations

IEEE 2874 (6.5.4.2) notes that HSML’s representation of Activities and norms is closely related to existing languages for automated planning and for assessing normative status. These relationships are informative, not normative. IEEE 2874 does not require these languages. It identifies them as candidate implementation approaches worth exploring.

LanguageCore constructRelationship noted in IEEE 2874
eFLINTAct frames (actions with preconditions and effects on normative status); Fact frames (facts holding in a situation)HSML ACTIVITY conditions parallel the pre- and post-conditions of eFLINT Act frames (6.6). eFLINT “could be used” to implement HSML Activities and Contracts (6.5.4.2).
PDDLActions with preconditions and effects for automated planningParallels the use of HSML Activities in planning; likewise “could be used” to implement Activities and Contracts.
One abstraction for planning and governance
IEEE 2874 argues that HSML Activities and Contracts form “an abstraction suitable for the purposes of both automated planning and automated governance.” Planning asks how to reach a desired state. Governance asks whether a state is ideal, and what follows if it is not. FF2020’s pipeline already produced both HSML and eFLINT from the same parsed legal text, which makes an HSML–eFLINT mapping a natural exploration.

Part 5 · Implementations

From Standard to Practice

Implementations range from the open HSML governance ontology to running demonstrations and a governance runtime.

Reference encoding

HSML Governance Module

SWF STD-2:2025 v0.2.0 and the open governance.ttl ontology on GitHub define Contract, Norm, Policy, Credential, CredentialProfile, and DeonticModality, along with an evaluation flow.

governance.ttlOWL / RDF
Law as code

Flying Forward 2020

Urban air mobility infrastructure that encodes EU and EASA rules in draft HSML so that drones comply automatically. Use cases included emergency delivery, infrastructure maintenance, and security monitoring.

ff2020.euUAM
Interoperability

Lunar Digital Twins

NASA JPL, CSUN, VERSES, and the Spatial Web Foundation demonstrated real-time collaboration between distributed NVIDIA Omniverse systems, and between Omniverse and Unity, by exchanging HSML messages. Contracts were not the focus of this demo.

IEEE Aerospace 2025
Agent coordination

EcoNet

Two AI agents, one running a thermostat and one a home battery, coordinate on comfort, cost, and emissions, with their entities, goals, and activities expressed in HSML.

IEEE Spectrum
Governance runtime

Interbilla BILLA OS

BILLA OS (Backbone for Intelligent Agent Lifecycle & Autonomy) is a federated governance and coordination runtime built on IEEE 2874. It provides policy enforcement, explainability, trust mediation, and observability, and keeps humans in control as autonomous systems operate at machine speed.

interbilla.com

Part 6 · Open directions

What Remains to Explore

💱
Incentives
IEEE 2874 deliberately leaves economic terms out of the CONTRACT entity, and HSML allows monetary terms only by extension. Its urban digital twin scenario already has residents responding to “incentives in contracting.”
✅
Formal guarantees
IEEE 2874 makes contract status decidable and auditable, but does not require proofs of consistency across composed policies. An HSML–eFLINT mapping could add formal normative reasoning.
🕸️
Decentralized evaluation
Edge evaluation, a priori parity, and trust that accrues across chained workflows are left to domain-specific architectures (IEEE 2874 6.5.4.5).
